Ideal Platinum 3000

Awning Windows

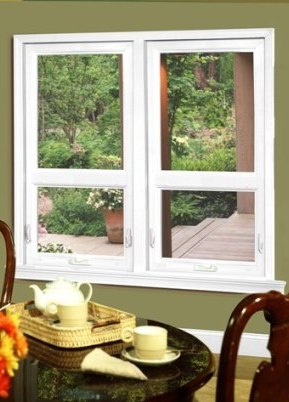

Awning windows are perfect for openings where additional protection is required from the weather. Sashes open easily with a fold-down crank handle and offer a clear view of the outdoors while providing maximum ventilation. Available in both horizontal and vertical designs, awning windows are available in combinations of both fixed and operable vents, allowing for optimum functionality and style.


Standard Features

  • Heavy duty multi-chambered extrusions provide structural integrity

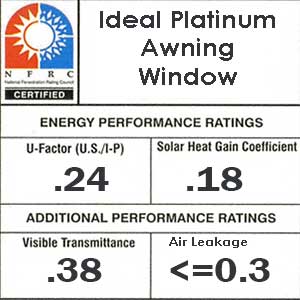

  • EMS+ glass package includes Duralite warm edge spacer for a .24 U-factor
  • Fully welded, foam filled frame and sashes add energy efficiency and comfort
  • Foam wrapped jambs reduce air leakage around window
  • E-Gard Plus coating on hardware outperforms zinc plated hardware and provides a newer look for years to come
  • Double strength glass which is heavier and far more durable than single strength
  • Heavy weatherstripping and bulb seal redcues air, water and noise infiltration
  • Continuous master frame on multi-lite units
  • Slimline design provide less vinyl frame, more glass
  • Extruded locking aluminum screen frame with heavy duty aluminum corner reinforcements and "UltraView" mesh


Dual surface, double strength LowE glass. Using two surfaces of LowE provides the same level of efficiency as a triple glazed unit. Argon Gas - more dense than air, slow down the movement of air within the 7/8" airspace, reducing the transfer of heat to cold for improved energy performance.


SuperSpacer is a warm edge spacer featuring Polymer EPDM (Ethylene-propylene-diene-monomer) construction, dependably delivers high performance for insulating glass units, including excellent resistance to ozone, weathering, water and aging, while maintaining its flexibility through wide changes in temperature and barometric pressure.


Cellular insulation on the frame minimizes drafts between the house and window.


Stylish, fold-down handles offer a contemporary look with less interference with window treatments.


Single-lever multi-point locking system provides security and an unmatched DP-60 Structural Performance Rating.


The UltraVue invisible insect screen is an innovative screen mesh that allows you to see the view and not the screen. UltraVue provides better airflow, more clarity, and better insect protection.


All these features with one of the best warranties in the industry
